Part 6: Akula / Kapanadze Experiments, Adjustability, Proper Harmonics

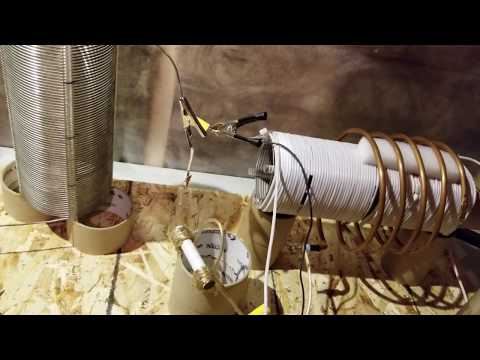

Rebuilt the entire thing basically and now I’m seeing proper harmonics when combined with the bi filar wound series caps on yoke winding.
Output is from the Tesla patent Grenade and number of turns dictated by the coil I began with and it’s centrepoint.
Also the output coil diameter was chosen to be less than the Tesla coils diameter so that the frequency could be lowered with capacitance and tuning to match the Tesla resonator harmonics
