Steorn motor V2: Measuring the coil inductance Vs the rotor magnet angle

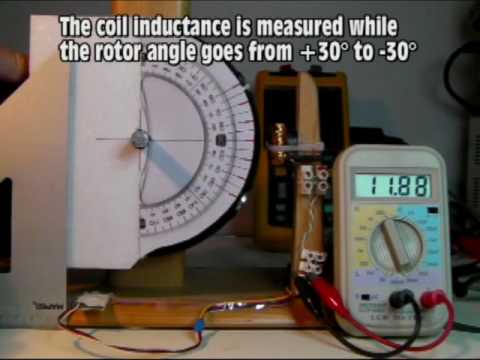

This experiment shows the change of the coil inductance Vs the rotor magnet position above the toroidal stator coil. I have used the Steorn motor v2 for conducting this test. I have measured the coil inductance with an inductance meter Voltcraft LCR-9063.A graduated foam disk has been set in front of the rotor to measure the rotor magnet angle Vs the axis of the toroidal stator coil. By Jean-Louis Naudin – jnaudin.free.fr
